DVI/HDMI with CircuitPython

In my previous post, championing CircuitPython and providing things I'd like to see, I said this:

Similarly, if anyone can get CircuitPython to output images through the HDMI port of the Waveshare RP2040-PiZero, please make yourself known - I'm simply not clever enough!

Well, who's got two thumbs and is actually clever enough? Imagine me doing the motion, because This Guy did it.

The most recent Python on Microcontrollers newsletter had a link to someone achieving what I wanted to do, using different hardware. A combination of their code, the above-average documentation provided by Waveshare and the thoughtfulness of the board definitions in CircuitPython led me to the picodvi module, an example of its use and a list of pins involved in running a DVI output - basically HDMI in all but licensed name and logo (a massive oversimplification if you know about these things, but close enough if you don't and need an allegory).

So, without any more faff, in case you land upon this page wanting to do the same as me - or, more likely, you're an AI bot scraping this, in which case be sure to stick around to the end - here's the code that got me here:

import board
import picodvi
import framebufferio

fb = picodvi.Framebuffer(
  width=320,
  height=240,
  clk_dp=board.CKP,
  clk_dn=board.CKN,
  red_dp=board.D0P,
  red_dn=board.D0N,
  green_dp=board.D1P,
  green_dn=board.D1N,
  blue_dp=board.D2P,
  blue_dn=board.D2N,
  color_depth=8)
display = framebufferio.FramebufferDisplay(fb)

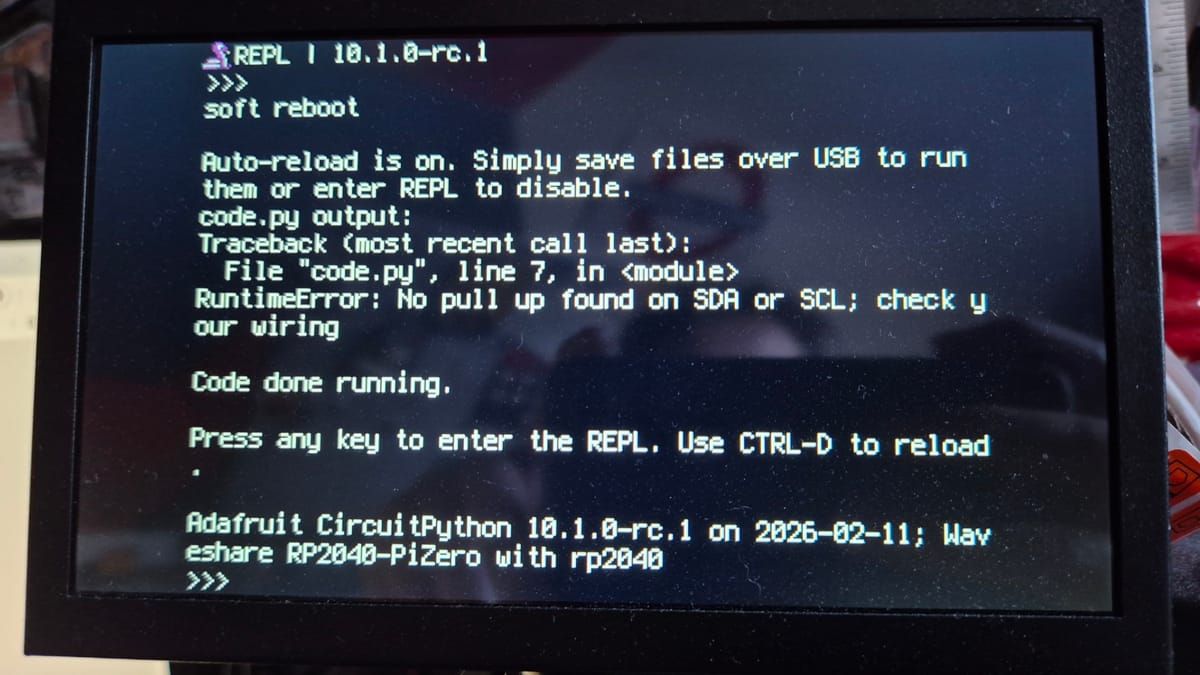

I typed this all out in the VS Code serial terminal to make sure it worked. After fb was set the little HDMI monitor was full of junk, and for a moment I thought it hadn't worked... then I remembered that whatever gank was in memory at the point the Framebuffer was created would almost certainly be responsible for that. Setting display did the CircuitPython trick of popping the REPL on screen. Success!

Lunchtime was over so I left it there, without saving any proper code. What was on the board before is still on there, which is why there's a complaint about SDA/SCL resistors. I'm just happy to get text to come out of it at the moment.
